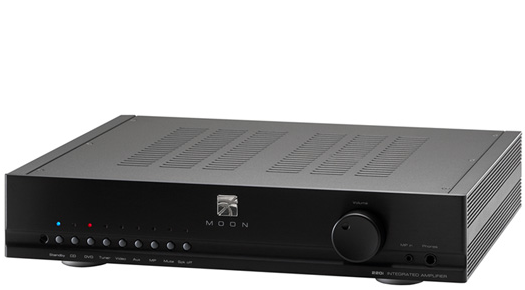

• Amplificador Integrado MOON 220i Amplificador Integrado MOON 220i Role o mouse na imagem para aproximar Amplificador Integrado MOON 220i

Amplificador Integrado MOON 220i

R$ 7.900,00

MOON 220i   Integrated Amplifier   Specifications



Configuration Single-ended / 2-channel
Class of operation - Amplifier A/AB
Single Ended Inputs   (RCA) 5 pairs
Mini-jack Input   (1/8") 1
Input Sensitivity 370mV - 3.0V RMS
Input Impedance 11,000 Ω
Preamplifier Output 1 pair
Output Power @ 8 Ω 40 Watts per channel
Output Power @ 4 Ω 80 Watts per channel
Output Impedance 0.04 Ω
Damping Factor > 200
Signal-to-noise Ratio 101dB @ full power
Maximum Output Voltage 20 Volts
Slew Rate 20V/µs
Maximum Current 14 amperes
Frequency Response 10Hz - 100kHz   (+0/-3dB)
Crosstalk @ 1kHz -78dB
IMD < 0.07%
THD   (20Hz - 20kHz @ 1 watt   /   @ 40 watts) < 0.015%   /   < 0.03%

Available Faceplate Finishes Black and Silver
Remote Control CRM-2 Full Function
Power Consumption @ idle 10 Watts
AC Power Requirements 120V / 60Hz     240V / 50Hz
Fuse Replacement - 120V 4A long fast blow
Fuse Replacement - 230V 2A long fast blow
Shipping weight 20 lbs / 8 kgs
Dimensions   (W x H x D) 16.9 x 3.5 x 14.5 in.   (42.9 x 8.9 x 36.8 cm.)
